제품 상세 정보:
|

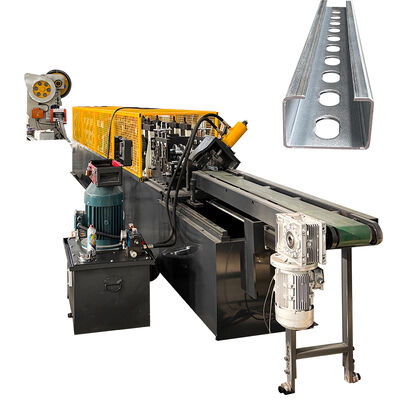

| 제품명: | C/Z/U 모양을 만드는 기계를 형성하는 금속 구조 C/Z/U 도리 목록 | 색상: | 파란색 또는 귀하의 요청으로 |
|---|---|---|---|
| 기계 속도: | 4-6m/min | 기계 다이멘션: | 7.5mx1.8mx1.4m |
| 기계 전원: | 11kw+5.5kw | 드리븐식: | 체인 또는 기어 박스 |
| 제어 시스템: | PLC | 절단 유형: | 유압 |
| 보증: | 2년 | 생활 시간: | 10년 이상 |
| 강조하다: | hydraulic punching C channel machine,purlin roll forming machine with flying cutter,C channel roll forming machine hydraulic |
||
| Component | Quantity |
|---|---|
| De-coiler | 1 set |
| Leveling device | 1 set |

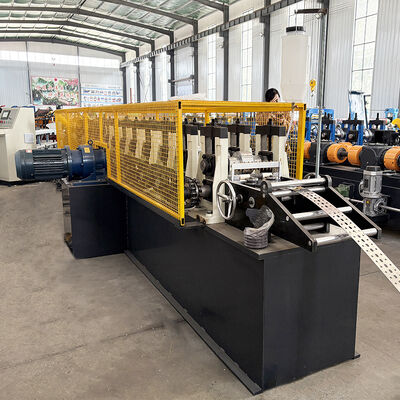

| Forming machine | 1 set |
| Punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
| Parameter | Manual Type (Standard) | Hydraulic Type (Optional) |
|---|---|---|
| Width | 500mm | 600mm |
| Capacity | 5000kgs | 5000kgs-8000kgs |
| Inner Diameter | 450-550mm | 450-550mm |
| Outer Diameter | 1500mm | 1800mm |
| Item | Parameter Detail |
|---|---|
| Processing Material | GI and Black Coils |
| Material Thickness | 1-3mm (standard), 3-5mm (customized) |
| Machine Frame | 360#H steel, diagonal line welding, leveling instrument measurement for high-precision |
| Machine Siding Panel | Plate type: 20mm thickness or Casting Pillar type (optional): 35mm thickness |
| Forming Stations | 15 stations (according to material thickness) |
| Machine Rollers | High grade Gcr15 forged steel, hard quenching and hard chroming (0.05mm thickness) |
| Machine Shaft | φ80-90mm high grade No.45 steel after treatment |
| Machine Spacers | CNC lathing in high-precision and wire-electrode cutting |
| Machine Bearings | China Haerbin bearing or SKF international bearing (optional) |
| Driving System | 2 inch chain or gear box (optional) |
| Machine Power | 7.5kw-22kw (according to size and thickness) |
| Machine Working Speed | Without punching: 8-12m/min or 10-30m/min (optional) |
| Machine Testing Method | Post-installation testing with profile drawing comparison, difference controlled within 0.5mm |
| Item | Parameter Detail |
|---|---|
| Frame Processing | Whole leveling surface made by drilling machine |
| Mould Material | Cr12mov |
| Mould Processing | Wire electrode-cutting for mould shape to save pressure |
| Hole Size | According to customer requirements |
| Hole Number | According to customer requirements |
| Pressure | 20Mpa |
