제품 상세 정보:
|
| 제품명: | 수동으로 Macchine를 형성하는 크기 C 도리 목록을 바꾸는 까만 강철 자동 절단 제조 | 기계 다이멘션: | 10mx1.8mx1.4m |
|---|---|---|---|
| 구동 시스템: | 체인 또는 기어 박스 | 제어 시스템: | PLC |
| 보증: | 2년 | 생활 시간: | 10년 이상 |
| 강조하다: | black steel c purlin roll forming machine,manual size change purlin machine,auto cutting c purlin former |
||

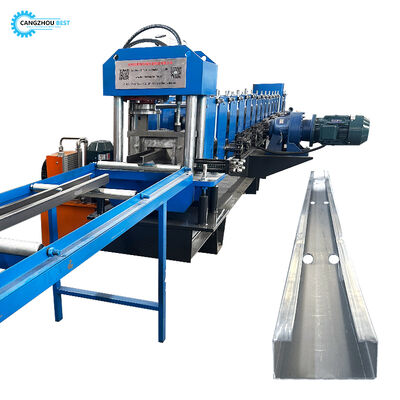

Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine
Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Advantage:
One machine can produce C Z U purlin, size range 80--300mm,machine can change size automatically, save cost and space.
Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Manufacture Black Steel Auto Cutting Manually Change Size C Purlin Roll Forming Macchine Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 set |
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 500mm | 600mm |
| Capacity | 5000kgs | 5000kgs-8000kgs |
| Inner diameter | 450-550mm | 450-550mm |
| Outter dimater | 1500mm | 1800mm |

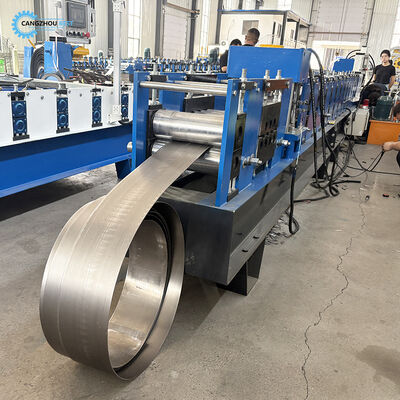

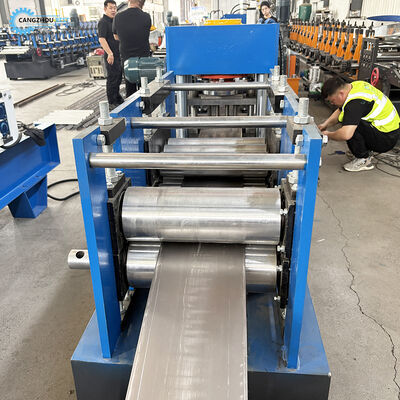

roll forming machine
(1) Material Thickness: 1-3 mm
(2) Rollers: 12Groups
(3) Material for Rollers: Gcr15 steel polished and coated with quenching HRC55-60°
(4) Material for shaft: #45 steel after treatment
(5) Diameter of shaft: 80mm
(6) Frame panel thickness: 20mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 11kw
(9) Rolling Speed: 8-10 m / min
(10) Driven type: 2＂Chain
Punching device
| Item | Parameter detail |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |
Cutting device
| Type |
Mould cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing |
the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working | Hydraulic type |
Stacker
| Type |
Manual |
Auto(option) |
| Length | 2pieces, length is adjustable | according to your requirement |
PLC
| Main item | Parameter detail |
| PLC |
Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Hydraulic pump
| Main Item | Parameter detail |
| Motor |
3kw China brand or according to your request |
| Pump | China brand or according to your request |
| Solenoid valve | China brand or according to your request |
| Cooling system |
Cooling fan |
