제품 상세 정보:
|
| 이름: | 기계를 형성하는 목록을 만드는 레이저 용접 관 | 인증: | CE/ISO9001 |
|---|---|---|---|
| 상태: | 새로운 | 치수(l*w*h): | 9600mm*1300mm*1450mm |
| 전압: | 380V 50Hz 3상 | 원료: | 아연 도금 시트 |
| 강조하다: | High speed steel profile roll forming machine,Laser welding pipe making machine,Down spout roll forming machine 20x20-40x40mm |
||

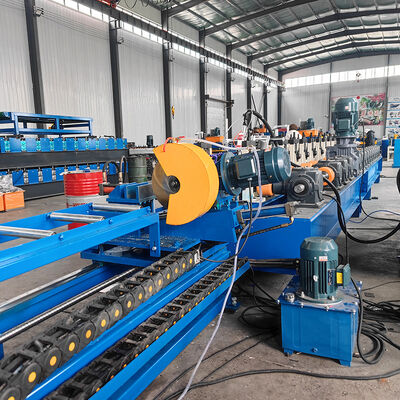

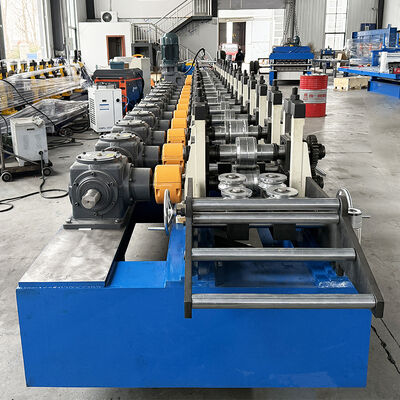

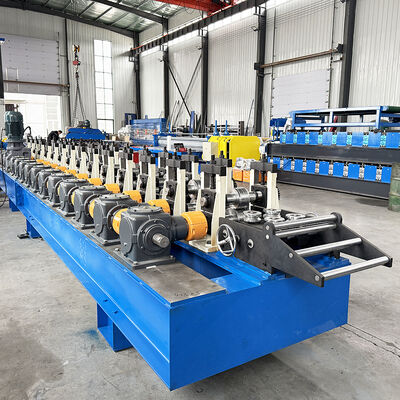

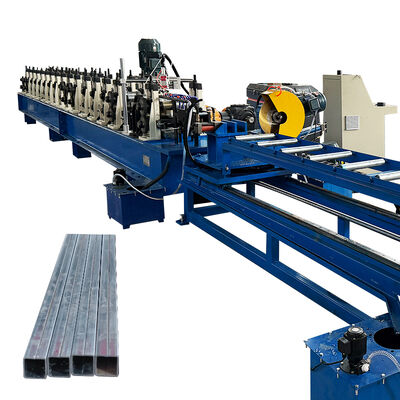

Laser Welding Pipe Making Roll Forming Machine Machine Components| Name | No. | Unit |
|---|---|---|
| Decoiler | 1 | set |
| Pre slide cutter | 1 | set |
| Roll forming machine | 1 | set |
| Laser welding machine | 1 | set |
| Control box | 1 | set |
| Cutter device | 1 | set |
| Output table | 1 | set |
| Cooling system | 1 | set |
| No. | Specification |
|---|---|
| 1 | Suitable Raw Material: Color or galvanised steel plate |
| 2 | Width of Raw Material: according to pipe size |
| 3 | Thickness of Raw Material: 1-3mm |
| 4 | Main Machine Dimensions: 12*0.8*1 meters |
| 5 | Motor Power: 7.5KW + 2.2KW |
| 6 | Rolling Material: 45# steel (plated with chrome on surface) |
| 7 | Rollers Station of Rollformer: 16 sets |
| 8 | Production Line Speed: 15-20m/min |
| 9 | Diameter of the rollers: Φ70 mm |
| 10 | Voltage: 380V 50Hz 3phases |
| 11 | Material of the cutting plate: Cr12 mould steel |
| 12 | Hydraulic oil: 40# |
| 13 | Processing precision: Within 1mm |
| 14 | Control system: Mitsubishi PLC with touching screen |
| No | Name | Description |
|---|---|---|
| 1 | Machine cabinet | High strength sheet metal structure |
| 2 | Electronic control system | ZYJC-2022A |
| 3 | Fiber optic laser | 3kw |
| 4 | Controller | ZYJC-PLC2022 |
| 5 | Welding head | 3000W Precision Focus Customization |
| 6 | Laser chiller | ZYJC-3000W |
| 7 | Peripheral environment | Ventilation, no impact within 5 meters |
| 8 | Voltage | 380v 50hz 3p |
| 9 | Ground Type | Direct centralized |
