제품 상세 정보:
|

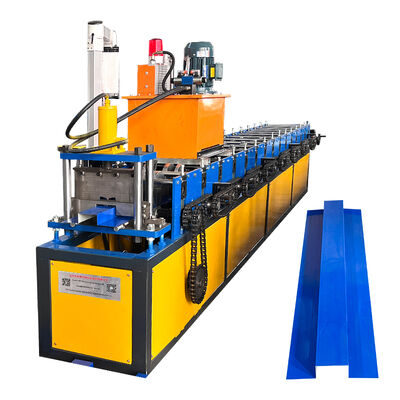

| 제품명: | 기계를 형성하는 목록을 만드는 유압 절단 K 홈통 | 기계 다이멘션: | 9mx1.4mx1.4m |
|---|---|---|---|
| 구동 시스템: | 체인 또는 기어 박스 | 절단 유형: | 유압 |
| 보증: | 2년 | 생활 시간: | 10년 이상 |
| 강조하다: | galvanized steel gutter roll forming machine,PLC control hydraulic cutting machine,down spout roll forming machine with warranty |
||
| Type | Manual Type (Standard) | Hydraulic Type (Option) |
|---|---|---|
| Width | 500mm | 600mm |
| Capacity | Max 5 tons | 5-15 tons |
| Inner Diameter | φ450-550mm | φ450-550mm |
| Outer Diameter | φ1500mm | φ1800mm |
| Type | Mould Type |
|---|---|
| Blade Material | Cr12mov quenching and grinding |
| Frame Processing | Whole bottom frame grinding for high precision |
| Blade Processing | Wire-electrode cutting with specialized upper blade technology |
| Working Type | Hydraulic |
| Type | Manual | Auto (Option) |
|---|---|---|
| Length | 2 pieces | 6m or 12m |
| Component | Specification |
|---|---|
| PLC | Delta (standard) or custom request |
| Inverter | China brand (standard) or custom request |
| Touch Screen | Mcgs (standard) or custom request |
| Encoder | China brand (standard) or custom request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
| Component | Specification |
|---|---|
| Motor | 3kw China brand or custom request |
| Pump | China brand or custom request |
| Solenoid Valve | China brand or custom request |
| Cooling System | Cooling fan |
