제품 상세 정보:
|

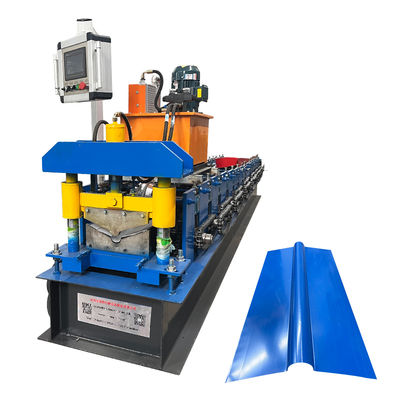

| 이름: | 기와 및 IBR 및 골판지 디자인을 위한 기계를 형성하는 강철 프로필 리지 캡 롤 | 키워드: | 강철 능선 캡핑 롤 성형 기계 |
|---|---|---|---|
| 유압 전력: | 3kw | 주요 힘: | 3kw |
| PLC 브랜드: | 델타 | 인버터 브랜드: | 델타 |
| 전압: | 380V | 색상: | 클라이언트 요청으로서 |
| 강조하다: | 380v Voltage Ridge Cap Roll Forming Machine,14 Rows Rollers Steel Profile Roll Forming Machine,40# Hydraulic Roof Tile Roll Forming Machine |
||

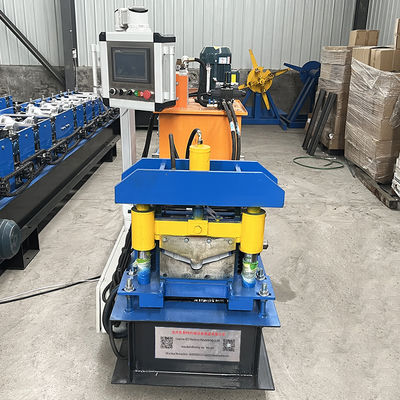

This machine produces two models of roofing, the most popular models widely used in roofing and walls of workshops. Two cylinders on the cutting head allow hydraulic oil to flow into the cylinder, enabling easy control of the cutter.
| NO. | ITEM | PARAMETER | NOTE |
|---|---|---|---|
| 1 | Suitable material | Type: Pre-painted sheet, Galvanized sheet Width: 500mm Thickness: 0.3-0.8mm Yield stress: G220-G300 |
|
| 2 | Product specifications | Detail as the attached file Length: Any length |
|
| 3 | Power requirement | Type: 380v/3ph/50hz Main Motor power: 5.5kw Cutter power: 4kw |
Motor brand Shanghai Lichao |
| 4 | Forming speed | 2m/min | Not include the time of cutting |
| 5 | Manual Decoiler (Optional) | Type: Manual Max capacity: 5t Suitable coil OD: 1250mm Suitable coil ID: 508mm |
|

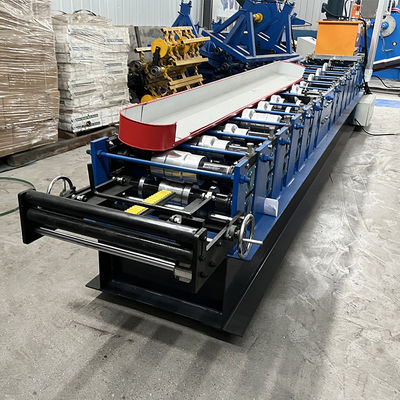

| 6 | Forming stand | 14 | Depend on actual design |
| 7 | Thickness of structure | 20mm | |
| 8 | Forming shaft diameter | 70 solid | |
| 9 | Type of cutting | Roll formed and length-set cutting | |
| 10 | Control system | Panasonic PLC and inverter | |
| 11 | Install dimension | 8.8m×1.5m×1.3m | Without panel length |
| 12 | Total weight (Approx) | 4.5T | Depend on final design |
Roof panels and wall panels are widely used in building construction including steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses. Equipment can be custom designed and manufactured to meet specific customer requirements. This model is particularly popular in Mexico.
담당자: Arno Hao
전화 번호: +8618717894416
