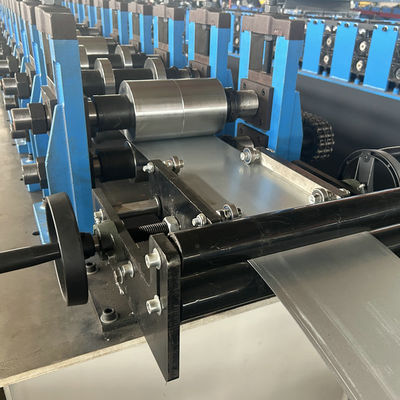

Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine
Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

큰 이미지 :  Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

제품 상세 정보:
원래 장소: 중국
브랜드 이름: BEST
인증: CE
모델 번호: YX45
결제 및 배송 조건:
최소 주문 수량: 1 세트
가격: 12500
포장 세부 사항: 적나라한
배달 시간: 45
지불 조건: T/T, LC
공급 능력: 10sets/개월

Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine

설명
절단 공차: ± 2mm 절단 길이: 조절할 수 있는
절단 시스템: 유압 절단 재료: 강철
이름: 스터드 및 트랙 롤 형성 기계 차원: 7.5*1.2*1.5m
인코더: 오론
강조하다:

high speed gypsum roll forming machine

,

C channel steel profile machine

,

stud and track roll forming machine

Product Description:

With a cutting tolerance of ±2mm, you can be sure that your finished products will be of the highest quality and meet all of your specifications. The machine comes equipped with a hydraulic cutting system that allows for precise and efficient cutting of your materials.

The Stud And Track Roll Forming Machine is made from high-quality steel materials that are designed to withstand even the most rigorous of production environments. This means that you can rely on this machine to provide consistent and reliable performance day after day.

In addition, this machine comes equipped with an Omron encoder that ensures accurate and precise measurements every time. This means that you can be sure that your finished products will meet all of your specifications and requirements.

Overall, the Stud And Track Roll Forming Machine is an excellent choice for anyone who needs a high-quality C stud roll forming machine or C profile roll forming machine for their production needs. With its advanced cutting system, durable construction, and precision measurements, this machine is sure to meet all of your needs and exceed your expectations.



Features:

  • Product Name: Stud And Track Roll Forming Machine
  • Name: Stud And Track Roll Forming Machine
  • Encoder: Omron
  • Cutting Tolerance: ±2mm
  • Cutting Length: Adjustable
  • Dimension: 7.5*1.2*1.5m

This roll forming machine is also known as c stud roll forming machine or stud roll forming machine.



Decoiler
Loading capacity 1.5 T
Inner diameter 470-530 mm
Steel coil width 300 mm.According to your actual drawing.
Type Manual
feeding table
It is used to control the width and position of the steel sheet.

The sheet is guided into the machine with correct position,

to make sure the panel is neat and parallel.

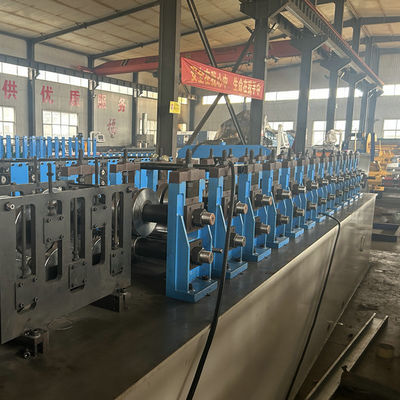

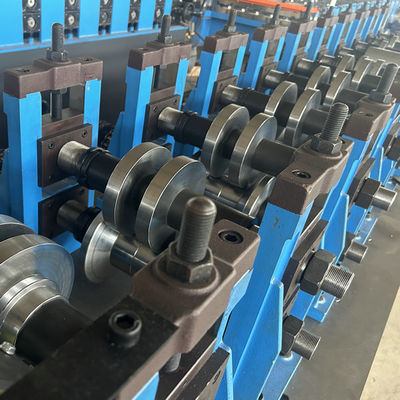

forming rollers
Material Cr12
Roller stations

11-16 stations.

According to your actual drawing

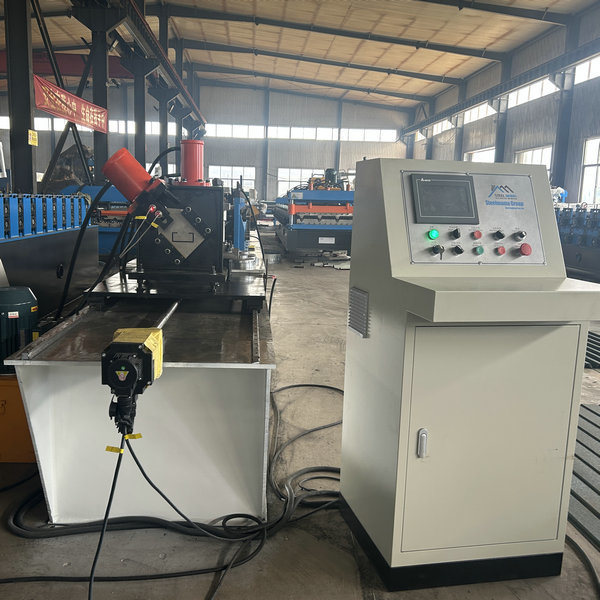

Cutting Device
Material of blade Cr12MOV, much better than normal Cr12 material
Hydraulic power 3kw



Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine 0



Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine 1



Flying Cutter High Speed Gypsum C Channel steel Profile Roll Forming Machine 2

Packing and Shipping:

Product Packaging:

  • The Stud and Track Roll Forming Machine is packed in wooden cases.
  • The size of the wooden case will depend on the size of the machine.
  • The machine is securely fastened and protected from damage during transportation.

Product Shipping:

  • The Stud and Track Roll Forming Machine is shipped by sea.
  • The shipping time will depend on the destination of the machine.
  • The machine is insured during transportation to protect against loss or damage.
