제품 상세 정보:
|
| 이름: | 기계를 형성하는 찬 자동 목록을 만드는 직류 전기를 통한 강철 석고 채널 C 단면도 | 재료 두께: | 0.6-1.6mm (235-345Mpa) |
|---|---|---|---|
| 샤프트: | 열처리와 고급 품질 45# 철강. | 형성 속도: | 20m/min에 대해 |
| 제어 시스템: | plc | ||
| 강조하다: | galvanized steel gypsum channel machine,cold roll forming machine for c profile,auto roll forming machine with warranty |
||

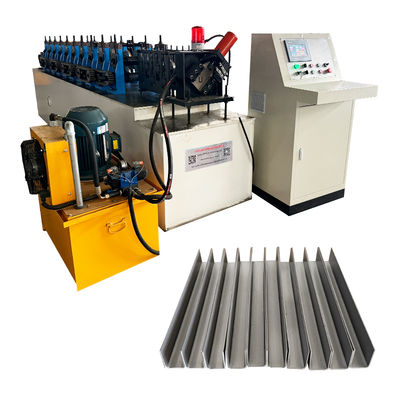

Galvanized Steel Gypsum Channel C Profile Making Cold Auto Roll Forming Machine
Technical specification:
| Stud, Track and Channel Roll Forming Machine | |||
| No. | Item | Specification | Optional |
| 1 | Suitable material | Type:Galvanized Coil, PPGI, Carbon steel Coil | |
| Thickness(mm):0.25-1.2 | |||
| Yield strength: 250 – 550MPa | |||
| Tensil stress( Mpa):G350Mpa-G550Mpa | |||
| 2 | Nominal forming speed(m/min) | 10-15m/min | Or according to your requirement |
| 3 | Forming station | 12statiins | |
| 4 | Decoiler | Manual decoiler | Hydraulic decoiler or double head decoiler |
| 5 | Main machine motor | Sino-German Brand | Siemens |
| 6 | PLC brand | Panasonic | Siemens |
| 7 | Inverter brand | Yaskawa | |
| 8 | Driving system | Chain drive | Gearbox drive |
| 9 | Rollers’ materail | Steel #45 | GCr15 |
| 10 | Station structure | Wall panel station | Forged Iron stationOr torri stand structure |
| 11 | Punching system | No | Hydraulic punching station or Punching press |
| 12 | Cutting system | Post-cutting | Pre-cutting |
| 13 | Power supply requirement | 380V 60Hz | Or according to your requirement |
| 14 | Machine color | Industrial blue | Or according to your requirement |

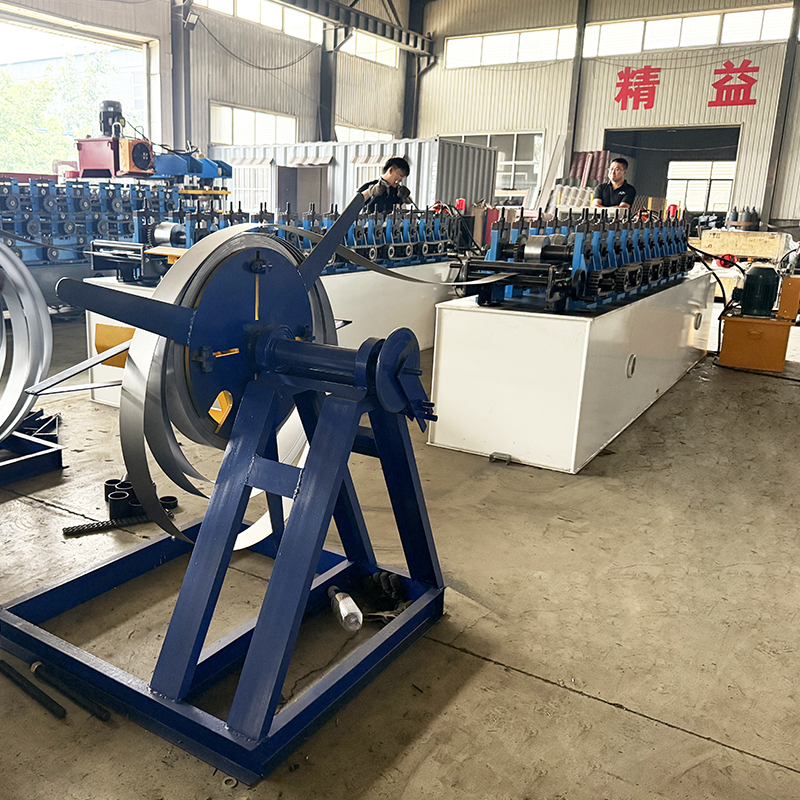

Main components of stud and track roll forming machine
| No. | Item | Quantity |
| 1 | Uncoiler | 1 Set |
| 2 | Guide Device | 1 Set |
| 3 | Roll Forming Machine | 1 Set |
| 4 | Hydraulic Station | 1 Set |
| 5 | Ran-out Table | 2 Sets |
| 6 | PLC System | 1 Set |
