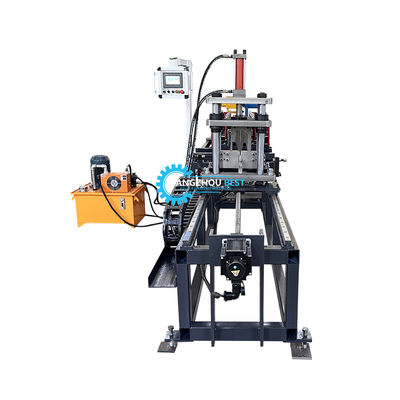

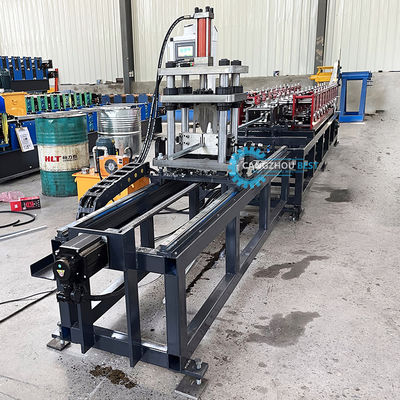

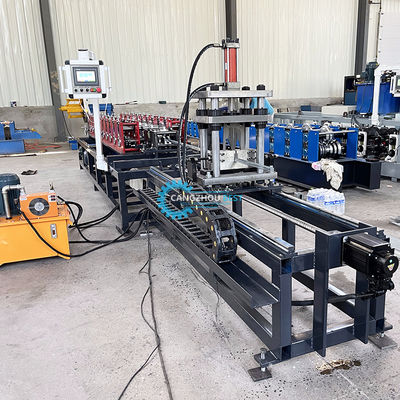

제품 상세 정보:
|
| 제품 이름: | 고속으로 기계를 형성하는 천장 금속 스터드 및 트랙 롤 | 제어 시스템: | plc |
|---|---|---|---|
| 절단 유형: | 정지없는 유압 절단 | 보증: | 2 년 |
| 일생: | 10 년 | 롤러 재료: | Cr12강철 |
| 샤프트 재료: | 45# 스틸 | 원료: | 0.3-1.5mm |
| 전압: | 요청으로 380V/220V | 속도: | 20-30m/분 |
| 강조하다: | steel profile roll forming machine,metal stud track forming machine,light steel framing channel machine |
||
Product categories of Light Keel Roll Forming Machine, we are specialized manufacturers from China,Light Keel Roll Forming Machine, Stud Light Keel Forming Machine suppliers/factory, wholesale high-quality products of Track Light Keel Forming Machine R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!
Working flow
Decoiler------feeding------roll forming---------punching-------cut to length-----output table
Machine Components
| Name | Quantity(set) |
| De-coiler | 1 |
| Feeding guiding Device | 1 |

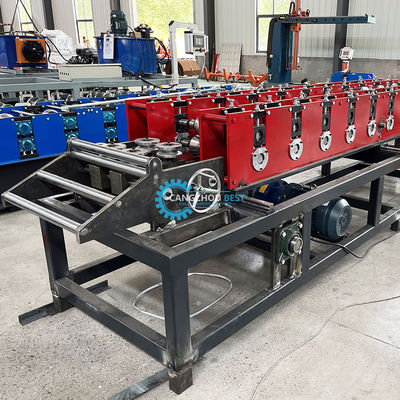

| Roll Forming Part | 1 |
| Hydraulic cutting Device | 1 |
| Computer control box | 1 |
| Hydraulic System | 1 |
| Run-out table | 1 |
Parameter
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 5.5 kw |
| Pump Power | 3kw |
| Power Supply | 3-Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 60mm |
| Backboard Thickness | 16mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
| Working conditions | |
| 1. Machine size | 10m x 1.2m (L XW) |
| 2. Working size | 20m x 2.5m (LXW) |
| 3. Power supply | 8.5kw |
| 4. Frequency | 50-60HZ |
| 5. Wires/cables | 4-6mm²(length according to workshop) |
| 6. Labor cost | 2 workers |
| 7. Tools | Spanners and screwdriver |
| 8. Lift device | 3-5t forklift or crane |
Re-sale Service :
1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
